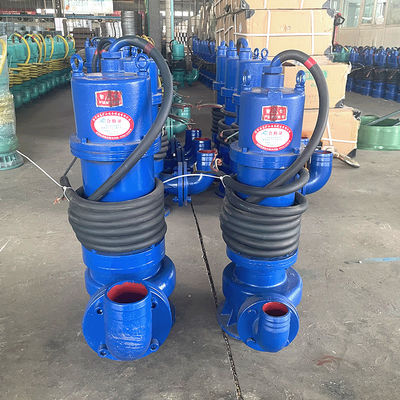

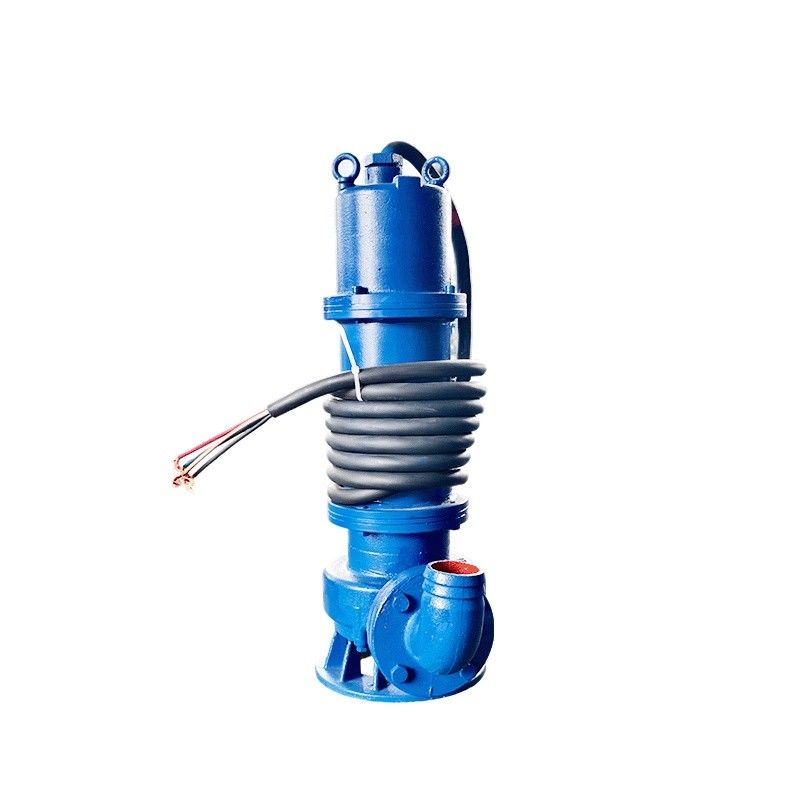

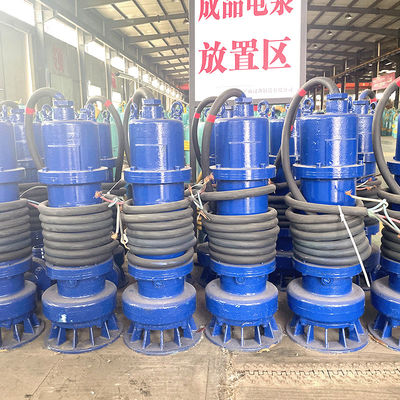

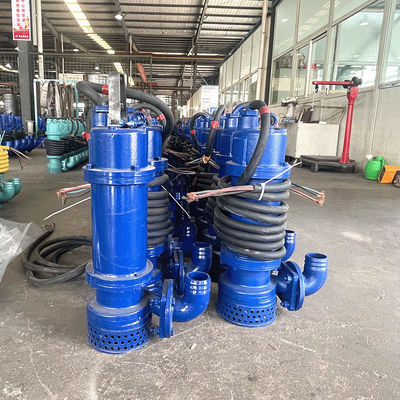

7.5kw 5.5hp 25m³/h 50m Explosion-Proof Submersible Sump Pumps submersible slurry pump Low Head High Discharge Pump For Sewage Water

The WQB25-50-7.5 is a high-efficiency submersible pump designed for reliable performance in challenging environments such as industrial drainage and wastewater management. With a flow rate of 25 cubic meters per hour (m³/h) and a maximum head of 50 meters, this pump excels in applications requiring significant lift capacity. Powered by a 7.5 kW motor, it ensures robust operation while maintaining energy efficiency. Constructed from corrosion-resistant materials like 304 or 316 stainless steel, the WQB25-50-7.5 resists wear and tear, even when handling aggressive fluids. Its innovative hydraulic design minimizes clogging risks and enhances performance, supported by superior sealing technology that guarantees leak-free operation. An optional smart monitoring system provides real-time data on essential metrics, facilitating predictive maintenance and reducing unexpected downtime. Compact and easy to install, the WQB25-50-7.5 offers dependable and long-lasting fluid transfer solutions.

• Applicable to explosion-proof marked products in areas with explosion-proof requirements.
• Power supply voltage: 380V,400V,440V,460V,660V,50Hz,60Hz,customizable options are available.
• Transport medium temperature: 0-40°C (for temperatures exceeding this limit, alternative pump models suitable for hot water are available).
• PH value of transported medium: 4-10.
• Medium density: ≤1100Kg/m³.
• Maximum submersion depth: 10m.

• The flow parts adopt QBQ surface treatment process, which has excellent wear and corrosion resistance.
• The thickened impeller, pump body, and pump cover effectively extend the service life of the components.
• Suitable for long-term use in environments with corrosive liquids and abrasive particles (such as sediments and gravel).
• The bottom inlet and bottom outlet design ensures strong clogging resistance and high flow capacity, making it suitable for a wider range of applications.
• Simple strcuture, lightweight, easy to install and maintain.
• The pump equipped with cooling jacket, which has high heat dissipation efficiency,could not fully submerged in the medium.

FAQ


Q1: What if the model I need is not in your catalog?
A: We can accept customization, including but not limited to flow rate, head, material, function, etc. You only need to tell me the relevant information, and we have a professional technical team to provide you with plans and drawings.

Q2: How do I place an order?
A: Send us an inguiry - Tell us your needs and usage scenarios - Customize drawings and samples - Discuss details - Modify and confirm - Sign a contract/Deposit - Mass production - Final payment and delivery - Further cooperation.

Q3: What applications are suitable for the WQB series pumps?
A: The WQB series pumps are suitable for a variety of applications including, but not limited to, wastewater treatment, industrial drainage, water removal at construction sites, and agricultural irrigation. They are especially designed for efficient fluid transfer in environments requiring high resistance to corrosion and wear.

Q4: Why choose you?
A: ATPUMP has been working with top domestic experts to develop and upgrade products since 2005. So far, it has participated in thousands of projects and cooperated with many major domestic projects. In China, we are the only one that can manufacture 1.5-4500kW products. We are the first choice for many domestic companies and projects, which proves that we have sufficient technical strength and quality support.

Q5: What guarantees do I have when buying your products?

A: Our after-sales service implements the "2-4-24 standard". 2-hour response, telephone remote guidance within 4 hours, and solutions within 24 hours. If there is a need, we can provide door-to-door after-sales service.

Q6: I want to be your dealer, what are the conditions?

A: No problem at all, dear, it is recommended that you purchase a sample first to try it out. If you have any special needs and modification suggestions, our technical team is at your service at any time. Looking forward to our further cooperation!
