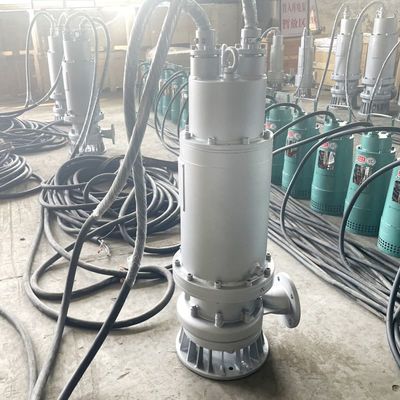

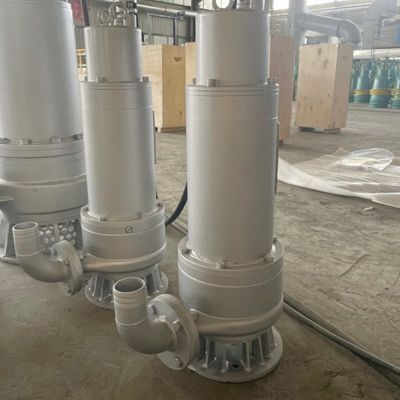

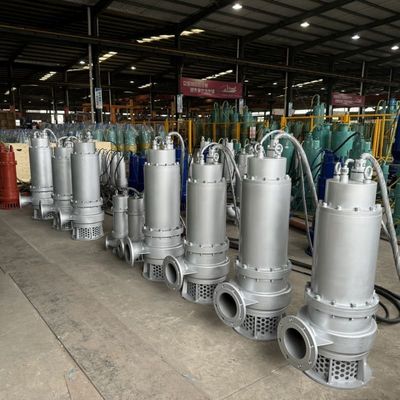

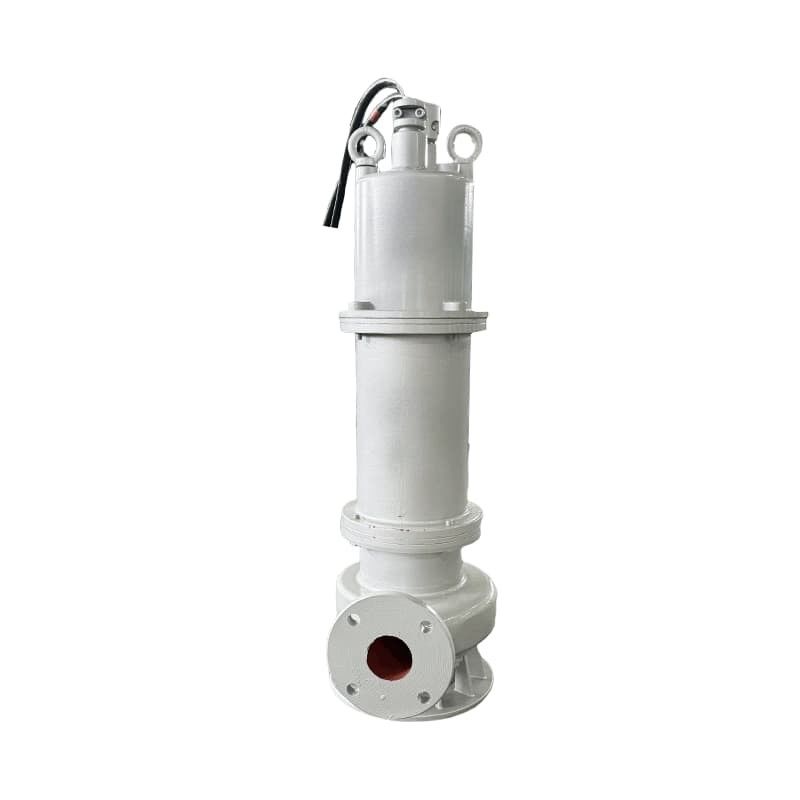

18.5kw 13hp 160m³/h 20m head 304/316/316L/Duplex Stainless Steel Corrosion Resistant Submersible Pump

The BQS160-20-18.5 is a robust stainless steel submersible pump tailored for efficient fluid management in diverse environments. Capable of delivering flow rates up to 160 cubic meters per hour (m³/h) with a maximum head of 20 meters, this pump is suitable for tasks ranging from light industrial drainage to wastewater treatment. The overcurrent parts can be constructed from premium materials like 304, 316, or 316L stainless steel, duplex stainless steel, or high-chromium alloys, providing superior resistance to corrosion and abrasion, making it highly adaptable to different fluid types and conditions.

One of the key strengths of the BQS160-20-18.5 is its optimized hydraulic design that enhances operational efficiency while reducing power consumption. This not only lowers running costs but also contributes to sustainability. The pump is equipped with high-quality sealing mechanisms that prevent leaks and reduce the need for frequent servicing. Furthermore, an optional integrated monitoring system offers real-time insights into critical operational metrics such as temperature, pressure, and vibration, facilitating timely maintenance and minimizing disruptions. The BQS160-20-18.5’s streamlined design simplifies installation and maintenance, fitting easily into confined areas. By combining durable construction with cutting-edge technology, the BQS160-20-18.5 delivers reliable performance and longevity in demanding conditions.

• Voltage: 380/660V,660/1140V,400V,440V,460V, customizable options are available.
• Medium: Temperature not exceeding 40°C, PH 4-10, medium density ≤ 1100 kg/m³.(Customizable for special requirements).
• Submersion depth: ≤20m.
• Materials suitable for highly corrosive fluids can be customized.
• The diameter of solid particles in the medium should comply with the regulations of MT/T671-2005. Please specify any special requirements when ordering.
• MT818.5-2009 flame-retardant cable for coal mines.

• Applicable to places with explosion hazards such as methane (gas), coal dust, etc.
• It can transport mixed sewage containing insoluble substances such as silt, coal slime, coal slag, and fiber.
• Applicable to buildings, hospitals, residential areas, municipal engineering, road construction, factory sewage discharge, etc., and discharges wastewater, rainwater and sewage containing solid particles and long fibers.
• The material of the product can be changed to cope with the situation of conveying corrosive liquids.

In addition to inheriting the structural advantages of the original model, the BQS stainless steel series also enhances the corrosion resistance and wear resistance of the material, and can easily cope with various harsh usage conditions, especially in the transportation of corrosive liquids. SS304, SS316, SS316L, duplex stainless steel, etc. can be selected according to needs. In addition to the several stainless steel materials mentioned above, high chromium alloy materials can also be selected for flow-through parts.

FAQ


Q1: What if the model I need is not in your catalog?
A: We can accept customization, including but not limited to flow rate, head, material, function, etc. You only need to tell me the relevant information, and we have a professional technical team to provide you with plans and drawings.

Q2: How do I place an order?
A: Send us an inguiry - Tell us your needs and usage scenarios - Customize drawings and samples - Discuss details - Modify and confirm - Sign a contract/Deposit - Mass production - Final payment and delivery - Further cooperation.

Q3: How to transport?
A: We have a variety of transportation options. If there is a port in your area, sea transportation is an economical choice. If you are in a hurry to use it, we can ship it by air for you. If you don’t have your own freight forwarder, we can contract the relevant work from departure to arrival at the destination port.

Q4: Why choose you?
A: ATPUMP has been working with top domestic experts to develop and upgrade products since 2005. So far, it has participated in thousands of projects and cooperated with many major domestic projects. In China, we are the only one that can manufacture 1.5-4500kW products. We are the first choice for many domestic companies and projects, which proves that we have sufficient technical strength and quality support.

Q5: What guarantees do I have when buying your products?

A: Our after-sales service implements the "2-4-24 standard". 2-hour response, telephone remote guidance within 4 hours, and solutions within 24 hours. If there is a need, we can provide door-to-door after-sales service.

Q6: I want to be your dealer, what are the conditions?

A: No problem at all, dear, it is recommended that you purchase a sample first to try it out. If you have any special needs and modification suggestions, our technical team is at your service at any time. Looking forward to our further cooperation!
