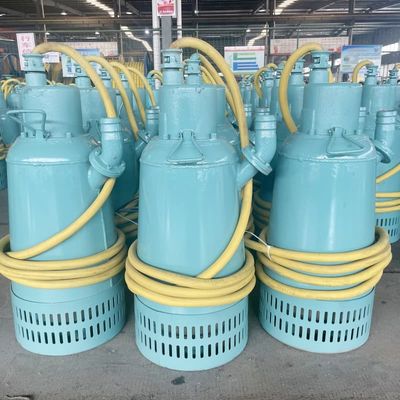

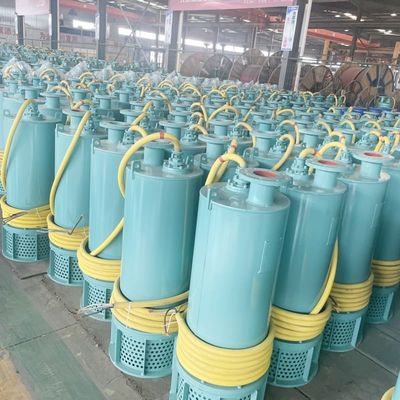

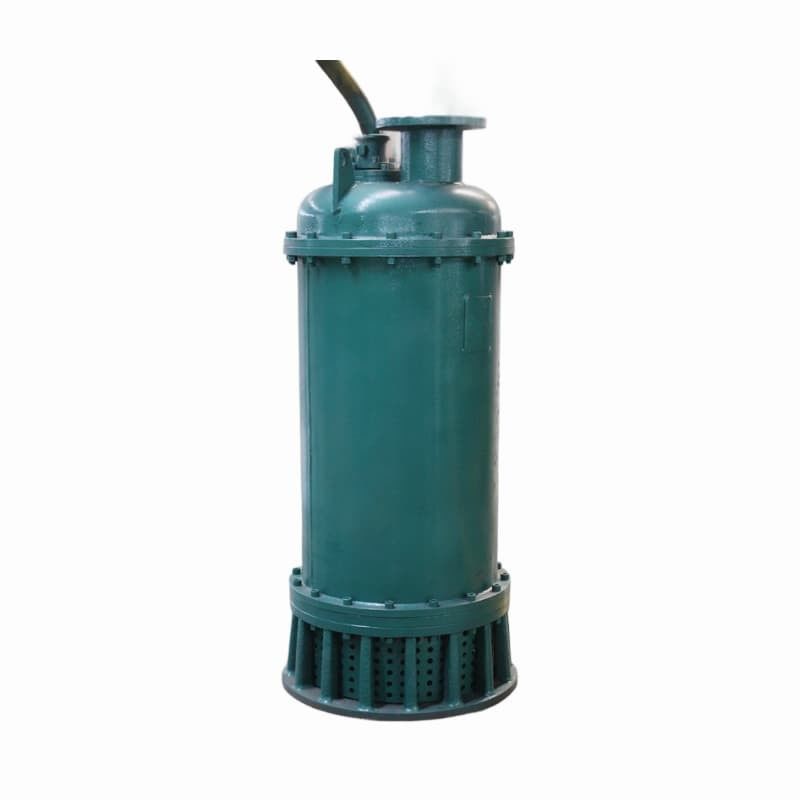

110kw WQN Multi-Stage High Head Submersible Sump Pump High-Pressure Water Supply And Drainage

The WQN submersible pump is a high-performance solution for challenging environments, including chemical plants, mining sites, and municipal sewage systems. It efficiently transports wastewater, sludge, and corrosive liquids, even in aquaculture and industrial settings. Its innovative design features a multi-stage impeller for high head and large flow capacity, while the durable cast iron construction ensures longevity. The pump’s mechanical seal resists high pressure, allowing deeper submersion, and the top discharge design optimizes space usage. The motor is cooled by pumped water and can include thermal protection for added safety. Suitable for media with solids up to 80% of the flow path size and temperatures ≤60°C.

• Medium temperature ≤ 60℃,medium density <1200kg/m³,PH 4-10 .
• When used for pumping highly corrosive fluids or media with abrasive solid particles, the pump requires special customization.
• The diameter of solid particles in the medium should be less than 80% of the minimum flow passage dimension.
• The length of fibers in the medium should not exceed the diameter of the pump's discharge port.

• Scenarios where explosion protection is not required include those in the chemical, petroleum, pharmaceutical, mining, papermaking, cement, steelmaking, power generation, and coal processing industries, among others.
• Additionally, urban sewage treatment plant drainage systems and municipal engineering projects also fall into this category.
• These applications are suitable for the construction industry and other sectors that necessitate the transportation of sewage containing particles. Furthermore, they are well-suited for pumping clear water or liquids with corrosive properties.
• Ponds, fish farms, or environments where corrosive liquids like seawater and chemical wastewater need to be pumped, are also applicable scenarios.

• The flow parts adopts a lower support structure, combined with a multi-stage impeller arrangement, ensuring that the pump meets the requirements for high head and large flow under various installation conditions.
• Made of hard cast iron, and the flow parts adopt QBQ surface treatment process, which has excellent wear resistance and corrosion resistance.
• The mechanical seals have high-pressure resistance,which enables pumps to submerged deeper. the pump equipped with cooling jacket,could not fully submerged in the medium.the flow parts below the motor,water cooling the motor during the operation,extending service life and enabling work at the low water level.
• The design of the top outlet is more space saving.
• The motor is optional with overheat protection.
• There is a pressure relief hole on the pump,which could release the pressure exerted by the medium on the shaft seal.
