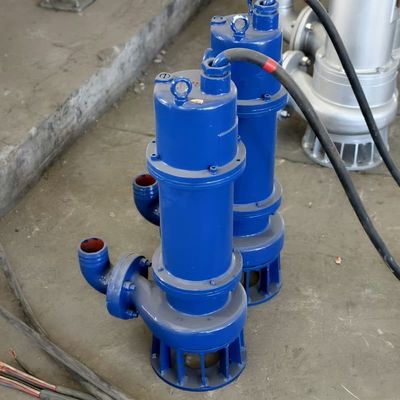

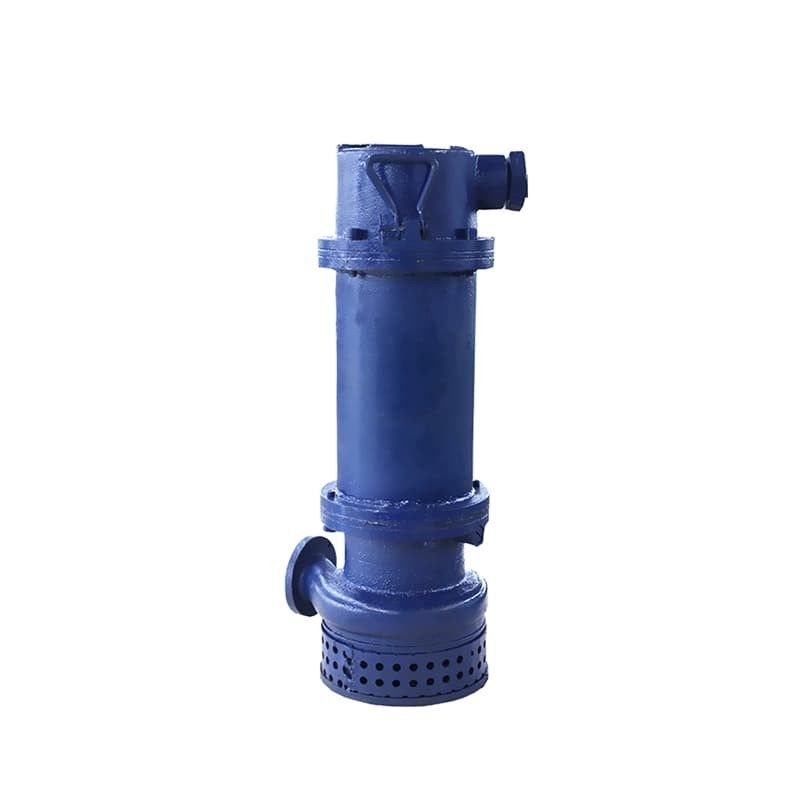

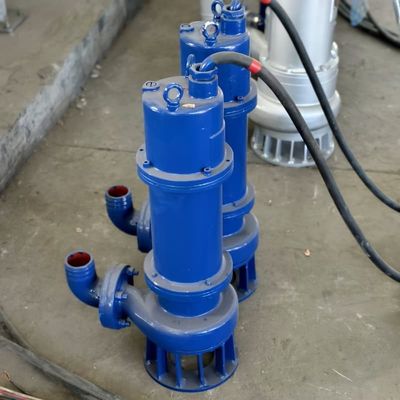

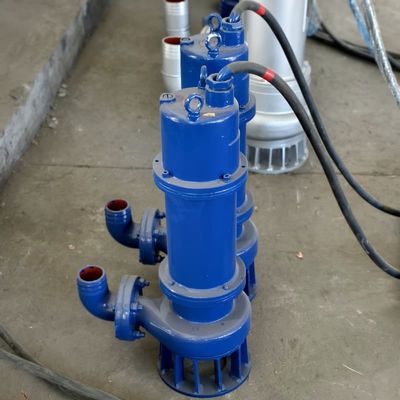

WQ 2.2kw 3HP Large Capacity Submersible Effluent Sewage Pump With Anti Clogging Impeller

WQ 2.2kw 3HP Large Capacity Submersible Effluent Sewage Pump With Anti Clogging Impeller

Brand Name: ATPUMP
Model Number: WQ25-10-2.2
MOQ: 1
Price: USD 209-71999 / set
Packaging Details: Wooden box
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Detail Information
Place of Origin:
China
Certification:
CE、ISO 9001、ISO 14001、ISO45001
Rated Power:
2.2kW
Synchronous Speed:
3000r/min
Efficiency:
50%
Outlet Diameter:
50 Mm
Color:
RAL 5005
Voltage:
380/660 Or 660/1140 V (Customizable)
Material:
QT600-3, SS304, SS316, SS316L, Duplex Stainless Steel,high Chromium Alloy
Medium Temperature:
≤ 60℃
PH:
4-10
Medium Density:
<1100 Kg/m³
Submergence:
10 M
Cable Length(Standard):
10 M
Customizable:
Yes
Frequency:
50Hz / 60Hz
Pump Type:
Industrial Submersible Sewage Pump
Power Range:
1.5-315kW
Drive:
Electric Motor
Supply Ability:
100000 sets per year
Highlight:

2.2kw submersible effluent pump

,

2.2kw submersible effluent sewage pump

,

3hp submersible effluent pump

Product Description

WQ2.2kw 3HP Large Capacity Submersible Pump For Municipal Drainage Systems Energy-Efficient Sewage Pump With Anti-Clogging ImpellerWQ 2.2kw 3HP Large Capacity Submersible Effluent Sewage Pump With Anti Clogging Impeller 0



WQ Series Sewage Pump: A durable, high-efficiency submersible pump built with corrosion-resistant cast iron/stainless steel for harsh environments like municipal sewage, industrial plants, and construction sites. Features an anti-clogging impeller, large flow channels, and advanced motor cooling for continuous operation. Equipped with automatic start-stop, overload protection, and waterproof seals. Offers portable/permanent installation, energy savings, and low maintenance, ideal for residential/commercial wastewater with solids or fibers.

WQ 2.2kw 3HP Large Capacity Submersible Effluent Sewage Pump With Anti Clogging Impeller 1

WQ 2.2kw 3HP Large Capacity Submersible Effluent Sewage Pump With Anti Clogging Impeller 2

WQ 2.2kw 3HP Large Capacity Submersible Effluent Sewage Pump With Anti Clogging Impeller 3


WQ 2.2kw 3HP Large Capacity Submersible Effluent Sewage Pump With Anti Clogging Impeller 4WQ 2.2kw 3HP Large Capacity Submersible Effluent Sewage Pump With Anti Clogging Impeller 5

  • Voltage: 380/660V,660/1140V,400V,440V,460V, customizable options are available.
  • Medium: Temperature not exceeding 60°C, PH 4-10, medium density ≤ 1200 kg/m³.(Customizable for special requirements).
  • Submersion depth: ≤20m.
  • When used for pumping highly corrosive fluids or media with abrasive solid particles, the pump requires special customization.
  • The diameter of solid particles in the medium should be less than 80% of the minimum flow passage dimension.
  • The length of fibers in the medium should not exceed the diameter of the pump's discharge port.

WQ 2.2kw 3HP Large Capacity Submersible Effluent Sewage Pump With Anti Clogging Impeller 6

WQ 2.2kw 3HP Large Capacity Submersible Effluent Sewage Pump With Anti Clogging Impeller 7

WQ 2.2kw 3HP Large Capacity Submersible Effluent Sewage Pump With Anti Clogging Impeller 8

WQ 2.2kw 3HP Large Capacity Submersible Effluent Sewage Pump With Anti Clogging Impeller 9

  • The contact parts utilize an innovative ADC coating process, renowned for its superior resistance to both wear and corrosion.
  • The reinforced impeller, casing, and housing significantly augment the longevity of these components.
  • Ideal for prolonged usage in settings with erosive fluids and abrasive media (like sand and small stones).
  • The side inlet and top outlet configuration guarantees robust anti-clogging performance and elevated flow rates, broadening its applicability across diverse scenarios.
  • Compact design, ergonomic build, facilitating effortless installation and maintenance procedures.

WQ 2.2kw 3HP Large Capacity Submersible Effluent Sewage Pump With Anti Clogging Impeller 10

WQ 2.2kw 3HP Large Capacity Submersible Effluent Sewage Pump With Anti Clogging Impeller 11

WQ 2.2kw 3HP Large Capacity Submersible Effluent Sewage Pump With Anti Clogging Impeller 12
