| Brand Name: | ATPUMP |
| Model Number: | BQS63-540/6-250/N |
| MOQ: | 1 |
| Price: | USD 219-71999 / set |
| Packaging Details: | Wooden box |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |

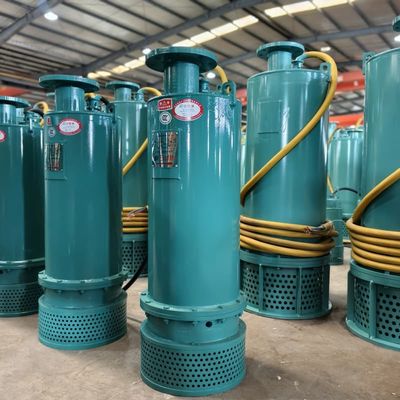

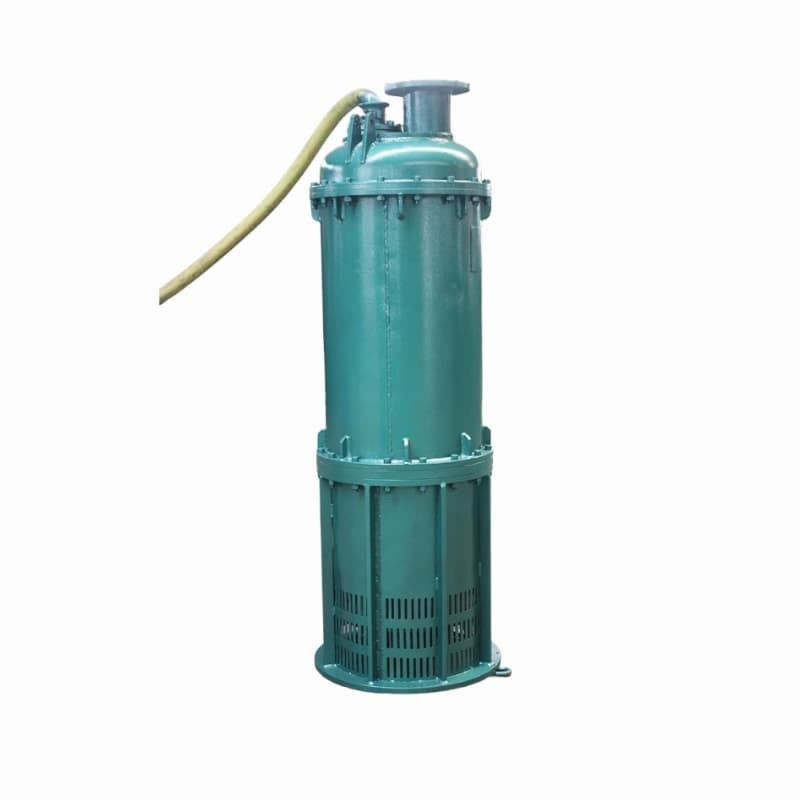

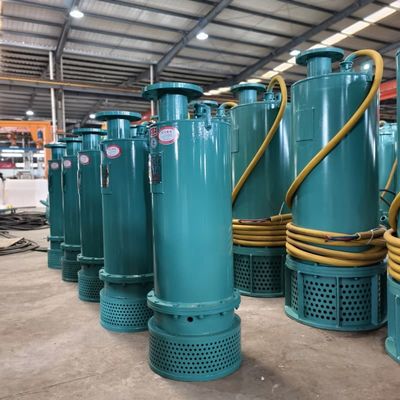

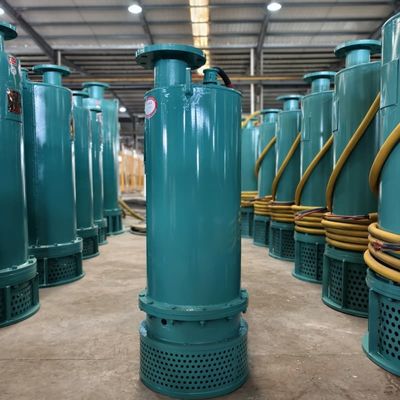

250kW 180hp 63m³/h 540m Large-Flow Explosion-Proof Submersible Pump For Mining and Oil Extraction Powerful and Reliable
The BQS series of mining explosion-proof submersible pumps are high-performance devices specifically designed for mines and industrial environments, offering exceptional safety and durability. This series includes multiple models suitable for different flow requirements, ranging from 10 cubic meters per hour to 900 cubic meters per hour, with a maximum head capability of up to 600 meters. For example, model BQS63-540/6-250/N can achieve a head of 540 meters at a flow rate of 63 cubic meters per hour, powered by a 250 kW motor. The BQS pumps feature an innovative cooling system that ensures stable performance during extended operation. Additionally, these pumps come equipped with intelligent monitoring systems that provide real-time operational status updates and issue warnings for potential faults, thereby enhancing the reliability and safety of the system.
| No. | Model |
Rated flow (m3/h) |
Rated head (m) |
Rated power (kW) |
Rated voltage (V) |
Synchronous speed (r/min) |
Efficiency (%) |
Outlet
diameter
(mm)
|
|---|---|---|---|---|---|---|---|---|
|
1 |
BQS63-540/6-250/N
|
63 |
540 |
250 |
380/660 or 660/1140 |
3000 |
43.5 |
100 |
|
DOUBLE-END MECHANICAL SEAL |
Precision machining, high efficiency； Excellent sealing performance, long service life.
|
|---|---|
|
ExdI/ExdbII EXPLOSION-PROOF MOTOR |
Professional explosion-proof motors；
|
|
HIGH-PRECISION ROTOR |
High-precision finish-machined rotor; Operates smoothly with low shaft end runout.
|
|
HIGH QUALITY BEARING |
High-load bearings; High precision of components, reliable operation.
|
|
SUPPORT CUSTOMIZATION |
Customizable stainless steel material; Corrosion and rust resistant pump will be more durable.
|
|
PRECISION MEASUREMENT IN THREE COORDINATES |
High precision, improve measurement efficiency; Reduce human error.
|
Q1: What if the model I need is not in your catalog?
A: We can accept customization, including but not limited to flow rate, head, material, function, etc. You only need to tell me the relevant information, and we have a professional technical team to provide you with plans and drawings.
Q2: How do I place an order?
A: Send us an inguiry - Tell us your needs and usage scenarios - Customize drawings and samples - Discuss details - Modify and confirm - Sign a contract/Deposit - Mass production - Final payment and delivery - Further cooperation.
Q3: How to transport?
A: We have a variety of transportation options. If there is a port in your area, sea transportation is an economical choice. If you are in a hurry to use it, we can ship it by air for you. If you don’t have your own freight forwarder, we can contract the relevant work from departure to arrival at the destination port.
Q4: Why choose you?
A: ATPUMP has been working with top domestic experts to develop and upgrade products since 2005. So far, it has participated in thousands of projects and cooperated with many major domestic projects. In China, we are the only one that can manufacture 1.5-4500kW products. We are the first choice for many domestic companies and projects, which proves that we have sufficient technical strength and quality support.
Q5: What guarantees do I have when buying your products?
A: Our after-sales service implements the "2-4-24 standard". 2-hour response, telephone remote guidance within 4 hours, and solutions within 24 hours. If there is a need, we can provide door-to-door after-sales service.
Q6: I want to be your dealer, what are the conditions?
A: No problem at all, dear, it is recommended that you purchase a sample first to try it out. If you have any special needs and modification suggestions, our technical team is at your service at any time. Looking forward to our further cooperation!
