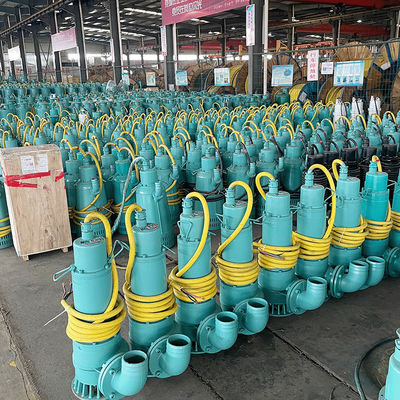

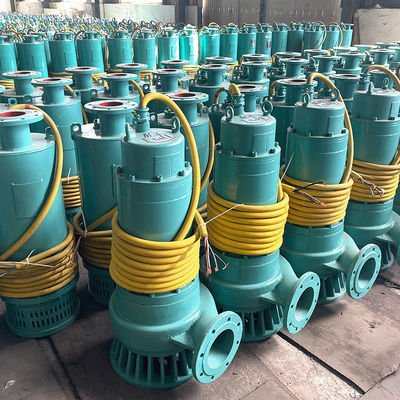

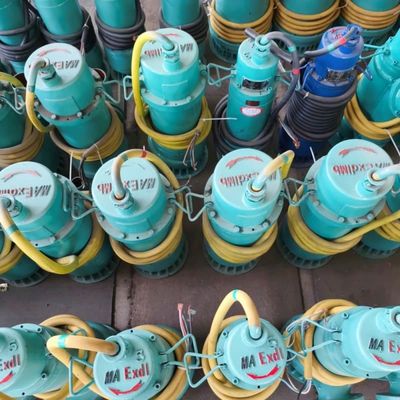

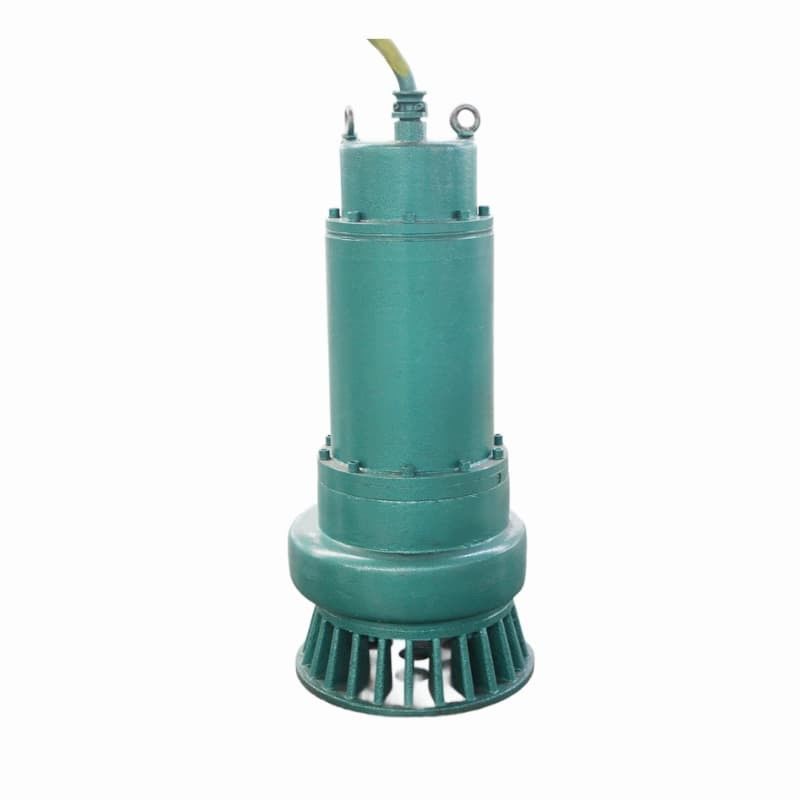

Emergency Submersible Sump Sewage Pump Ultra-Quiet 22kw Flow For Hotels, Hospitals & Heavy Rain Floods

WQ series comes with automatic start-stop capabilities, overload protection, and watertight seals for heightened safety and dependability. Offering versatile installation options—be it portable or permanent—and boasting a compact footprint, this pump delivers potent performance, energy efficiency, and minimal maintenance, catering to the needs of both residential and commercial wastewater management applications seamlessly.

• Voltage: 380/660V,660/1140V,400V,440V,460V, customizable options are available.
• Medium: Temperature not exceeding 60°C, PH 4-10, medium density ≤ 1200 kg/m³.(Customizable for special requirements).
• Submersion depth: ≤20m.
• When used for pumping highly corrosive fluids or media with abrasive solid particles, the pump requires special customization.
• The diameter of solid particles in the medium should be less than 80% of the minimum flow passage dimension.
• The length of fibers in the medium should not exceed the diameter of the pump's discharge port.

• Applicable in various industries including chemicals, petroleum, pharmaceuticals, mining, papermaking, cement production, steelmaking, power generation, and coal processing.
• It is also suited for drainage systems in urban sewage treatment plants and municipal engineering projects.
• Furthermore, it is ideal for the construction industry and other sectors that necessitate the pumping of sewage containing particles, as well as for transporting clear water or liquids with corrosive properties.
• Additionally, it can be used in ponds, fish farms, or settings where there is a need to pump corrosive liquids such as seawater and chemical wastewater.

• The flow parts adopt QBQ surface treatment process, which has excellent wear and corrosion resistance.
• The thickened impeller, pump body, and pump cover effectively extend the service life of the components.
• Suitable for long-term use in environments with corrosive liquids and abrasive particles (such as sediments and gravel).
• The bottom inlet and bottom outlet design ensures strong clogging resistance and high flow capacity, making it suitable for a wider range of applications.
• Simple strcuture, lightweight, easy to install and maintain.

• The flow components undergo the QBQ surface treatment process, renowned for its superior resistance to wear and corrosion.
• The impeller, pump body, and pump cover have been thickened to significantly prolong the lifespan of these parts.
• They are designed for prolonged use in environments containing corrosive liquids and abrasive particles, such as sediments and gravel.
• The design, featuring a bottom inlet and outlet, ensures robust resistance to clogging and high flow rates, broadening its range of applicable scenarios.
• Furthermore, its simple structure, lightweight build, and ease of installation and maintenance make it an exceptional choice.

FAQ


Q1: What if the model I need is not in your catalog?
A: We can accept customization, including but not limited to flow rate, head, material, function, etc. You only need to tell me the relevant information, and we have a professional technical team to provide you with plans and drawings.

Q2: What applications are the WQ series submersible sewage pumps suitable for?
A: The WQ series pumps are primarily designed for industrial wastewater applications, including factory effluent discharge. They are also suitable for agricultural irrigation and drainage, construction site dewatering, and other scenarios where handling corrosive environments and solid-laden fluids is required.

Q3: How to transport?
A: We have a variety of transportation options. If there is a port in your area, sea transportation is an economical choice. If you are in a hurry to use it, we can ship it by air for you. If you don’t have your own freight forwarder, we can contract the relevant work from departure to arrival at the destination port.

Q4: Why choose you?
A: ATPUMP has been working with top domestic experts to develop and upgrade products since 2005. So far, it has participated in thousands of projects and cooperated with many major domestic projects. In China, we are the only one that can manufacture 1.5-4500kW products. We are the first choice for many domestic companies and projects, which proves that we have sufficient technical strength and quality support.

Q5: What guarantees do I have when buying your products?

A: Our after-sales service implements the "2-4-24 standard". 2-hour response, telephone remote guidance within 4 hours, and solutions within 24 hours. If there is a need, we can provide door-to-door after-sales service.

Q6: I want to be your dealer, what are the conditions?

A: No problem at all, dear, it is recommended that you purchase a sample first to try it out. If you have any special needs and modification suggestions, our technical team is at your service at any time. Looking forward to our further cooperation!
