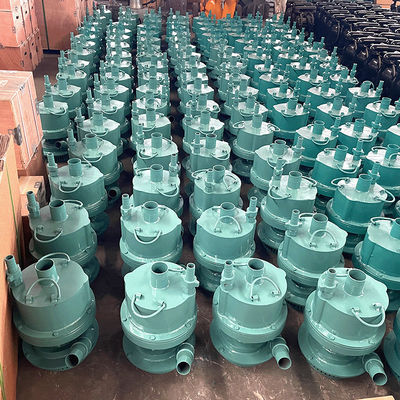

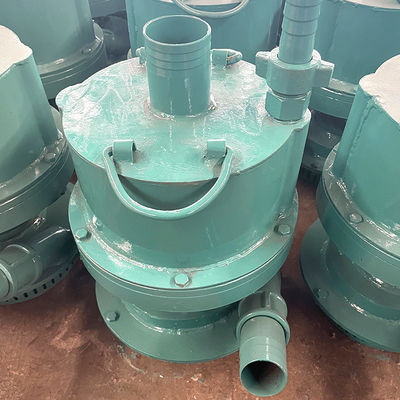

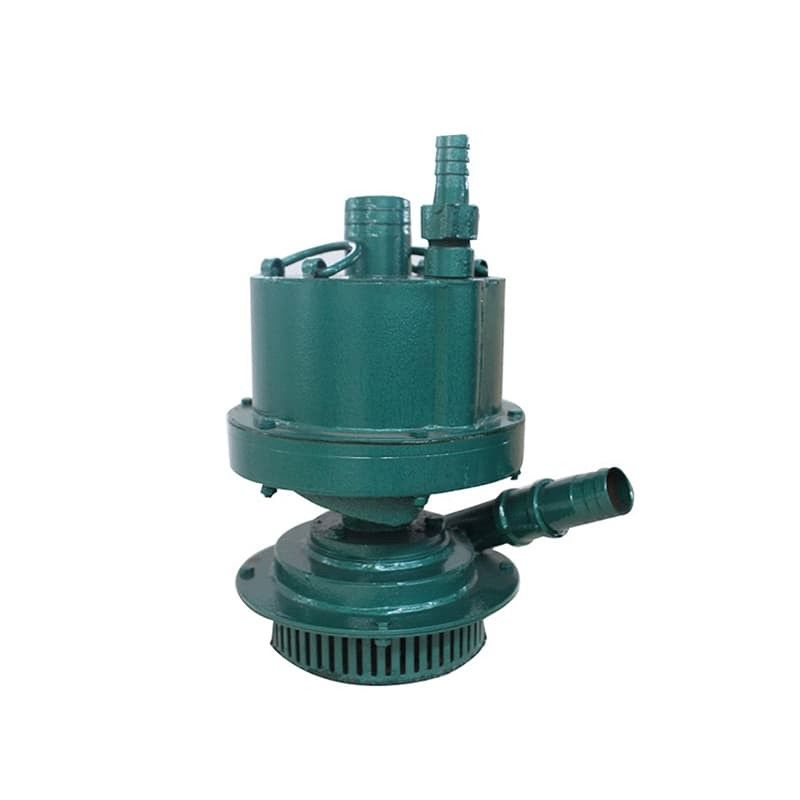

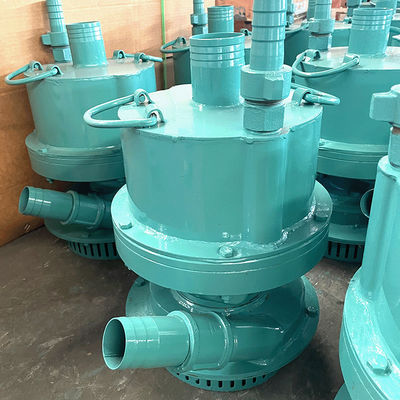

FQW series 20m³/h 40m pneumatic submersible pump dewatering pumps mining and industrial pumps

The FQW series pneumatic submersible pump is mainly composed of three parts: pump body, air motor and flow passage.

1. Pump body: divided into upper and lower chambers, with a sealing ring in the middle to separate air and water. The sealing ring is sealed with a spring, and the pressure of air and water is used to make high-pressure air and water enter the inner wall of the upper and lower sealing rings respectively, so that they expand inside and enhance the sealing effect.

2. Air motor part: composed of rotor, turbine, upper and lower cylinders, bearings, etc. Compressed air is used as the power to impact the turbine to drive the rotor to run at high speed.

3. Flow passage part: composed of water wheel, pump cover, suction port, pump seat, etc. The water wheel is installed on the rotor shaft in the lower chamber of the shell. Compressed air is sent in from the air inlet. The rotation of the rotor drives the water wheel. The water in the water wheel is pressed into the water outlet vortex of the shell under the action of centrifugal force and discharged along the outlet pipe.

• Mine shaft and roadway development.
• Shaft construction for vertical wells.
• Drainage construction of underground chamber works.

FAQ


Q1: What if the model I need is not in your catalog?
A: We can accept customization, including but not limited to flow rate, head, material, function, etc. You only need to tell me the relevant information, and we have a professional technical team to provide you with plans and drawings.

Q2: How do I place an order?
A: Send us an inguiry - Tell us your needs and usage scenarios - Customize drawings and samples - Discuss details - Modify and confirm - Sign a contract/Deposit - Mass production - Final payment and delivery - Further cooperation.

Q3: How to transport?
A: We have a variety of transportation options. If there is a port in your area, sea transportation is an economical choice. If you are in a hurry to use it, we can ship it by air for you. If you don’t have your own freight forwarder, we can contract the relevant work from departure to arrival at the destination port.

Q4: Why choose you?
A: ATPUMP has been working with top domestic experts to develop and upgrade products since 2005. So far, it has participated in thousands of projects and cooperated with many major domestic projects. In China, we are the only one that can manufacture 1.5-4500kW products. We are the first choice for many domestic companies and projects, which proves that we have sufficient technical strength and quality support.

Q5: What guarantees do I have when buying your products?

A: Our after-sales service implements the "2-4-24 standard". 2-hour response, telephone remote guidance within 4 hours, and solutions within 24 hours. If there is a need, we can provide door-to-door after-sales service.

Q6: I want to be your dealer, what are the conditions?

A: No problem at all, dear, it is recommended that you purchase a sample first to try it out. If you have any special needs and modification suggestions, our technical team is at your service at any time. Looking forward to our further cooperation!
