90kw 220m³/h flow 70m WQ series industrial submersible electric pump pumping chemical wastewater dewatering pump sewage pump 380Vsewage discharge agricultural irrigation drainage

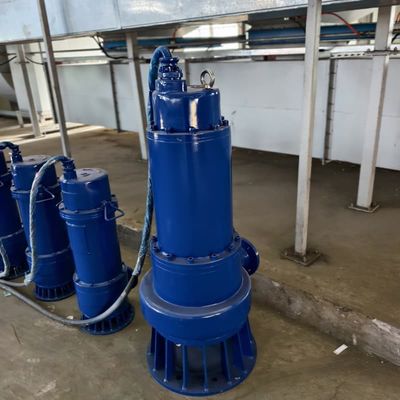

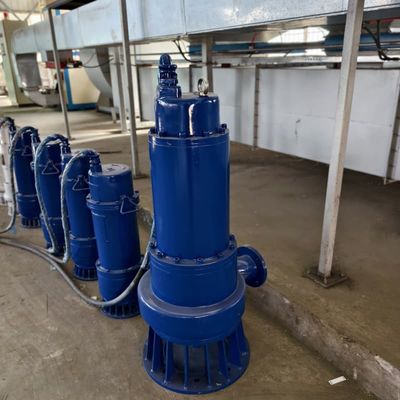

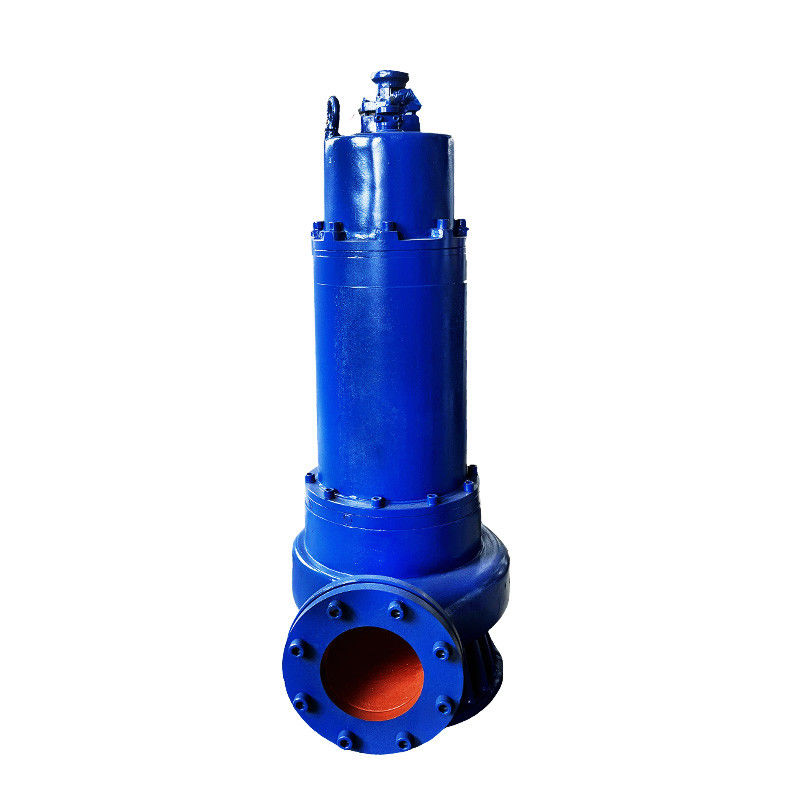

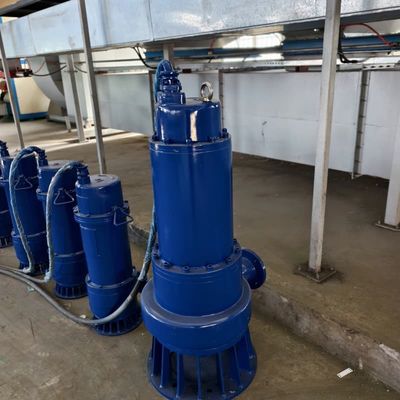

WQ220-70-90 refers to a 220m³/h, 70m head, 90kw submersible sewage pump, which can be used for industrial wastewater treatment, municipal water supply systems, agricultural irrigation, construction sites, fire drainage systems, seawater treatment, etc.

• Voltage: 380/660V,660/1140V,400V,440V,460V, customizable options are available.
• Medium: Temperature not exceeding 60°C, PH 4-10, medium density ≤ 1200 kg/m³.(Customizable for special requirements).
• Submersion depth: ≤20m.
• When used for pumping highly corrosive fluids or media with abrasive solid particles, the pump requires special customization.
• The diameter of solid particles in the medium should be less than 80% of the minimum flow passage dimension.
• The length of fibers in the medium should not exceed the diameter of the pump's discharge port.

• Applicable to chemical, petroleum, pharmaceutical, mining, papermaking, cement, steelmaking, power generation, coal processing industries, etc.
• Urban sewage treatment plant drainage systems, municipal engineering, etc.
• Suitable for the construction industry and others requiring the conveyance of sewage containing particulates, as well as for pumping clear water or liquids with corrosive properties.
• Ponds, fish ponds, or scenes where corrosive liquids such as seawater and chemical wastewater need to be pumped.

• The flow parts adopt QBQ surface treatment process, which has excellent wear and corrosion resistance.
• The thickened impeller, pump body, and pump cover effectively extend the service life of the components.
• Suitable for long-term use in environments with corrosive liquids and abrasive particles (such as sediments and gravel).
• The bottom inlet and bottom outlet design ensures strong clogging resistance and high flow capacity, making it suitable for a wider range of applications.
• Simple strcuture, lightweight, easy to install and maintain.

FAQ


Q1: What if the model I need is not in your catalog?
A: We can accept customization, including but not limited to flow rate, head, material, function, etc. You only need to tell me the relevant information, and we have a professional technical team to provide you with plans and drawings.

Q2: What applications are the WQ series submersible sewage pumps suitable for?
A: The WQ series pumps are primarily designed for industrial wastewater applications, including factory effluent discharge. They are also suitable for agricultural irrigation and drainage, construction site dewatering, and other scenarios where handling corrosive environments and solid-laden fluids is required.

Q3: How to transport?
A: We have a variety of transportation options. If there is a port in your area, sea transportation is an economical choice. If you are in a hurry to use it, we can ship it by air for you. If you don’t have your own freight forwarder, we can contract the relevant work from departure to arrival at the destination port.

Q4: How do these pumps prevent fiber clogging?
A: The WQ series pumps feature an optimized hydraulic model and specially designed impellers that effectively prevent fiber clogging, ensuring efficient operation and reducing maintenance needs.

Q5: What guarantees do I have when buying your products?

A: Our after-sales service implements the "2-4-24 standard". 2-hour response, telephone remote guidance within 4 hours, and solutions within 24 hours. If there is a need, we can provide door-to-door after-sales service.

Q6: Can the WQ series pumps handle corrosive liquids?

A: The WQ series pumps are manufactured using high-quality materials and advanced manufacturing processes, combined with reliable sealing and cooling systems, ensuring a long service life. Regular maintenance can further extend the pump's lifespan.In addition, we have a variety of materials to choose from to cope with different usage environments and conditions.
